Bill LeBrun's Rotec Radial Engine Mount for Jungmeister

Bill LeBrun with his Jungmeister's engine mount. Bill created a jig to keep the carefully fitted pieces in position for Luc StMars at AirFab in Winnipeg, Manitoba, to weld. Bills engine mount fits perfectly to radial engine and the airframe!

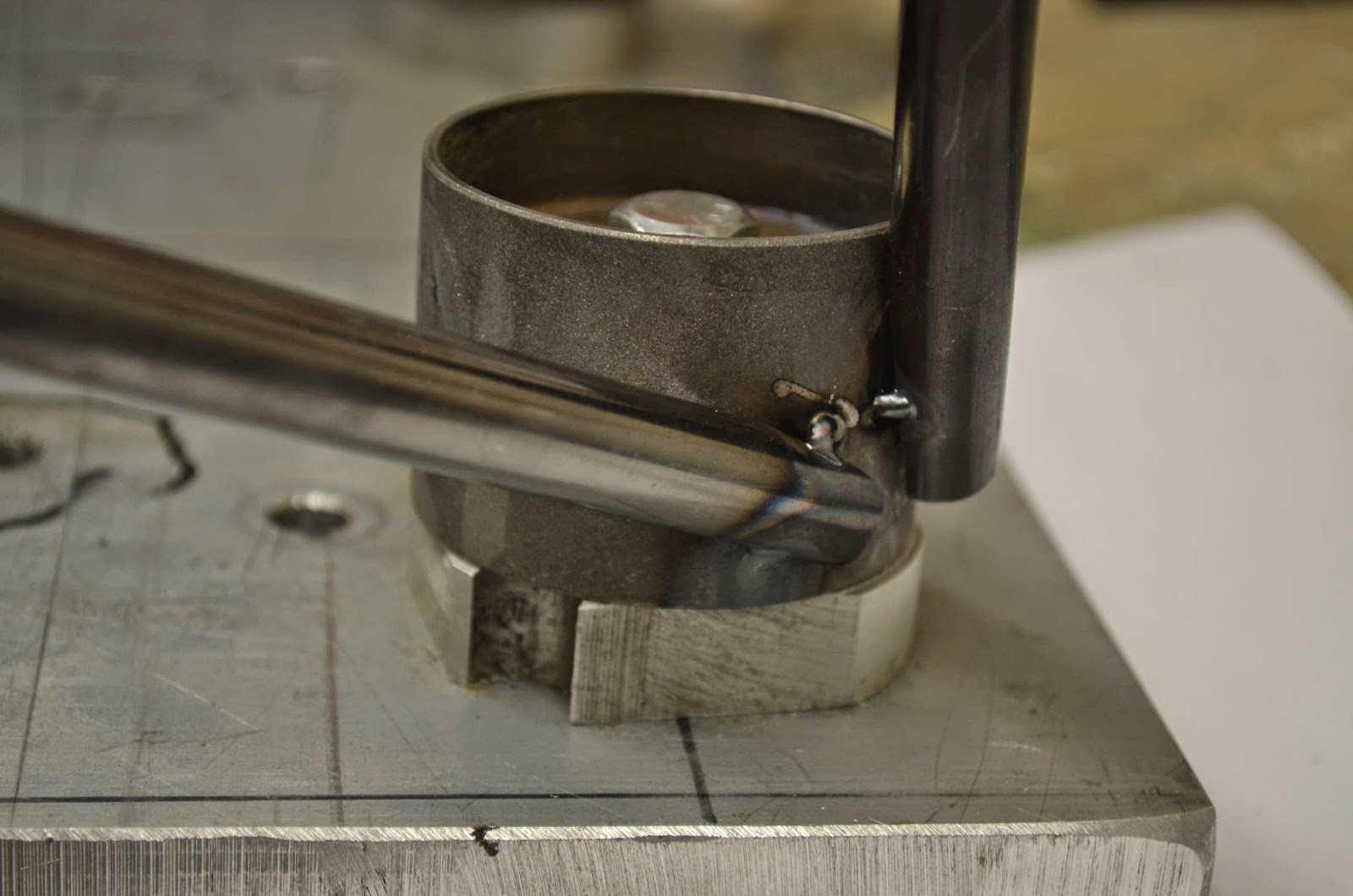

Building the jig.

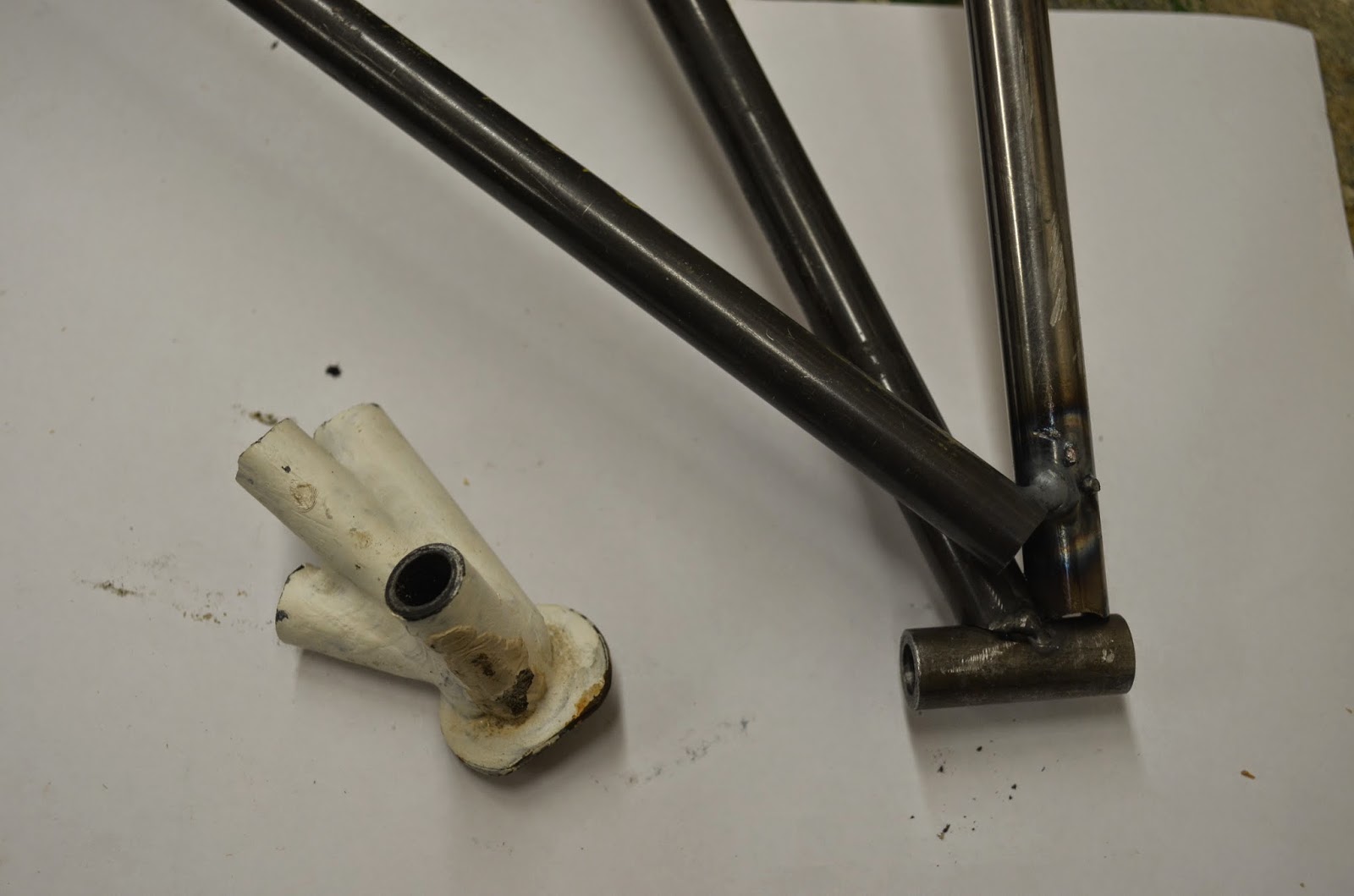

Comparing clusters to another old rusted radial mount.

Karl Pfister's engine mount centreline drawings - thank you Karl.

Jungmeister plans for engine mount
